XINJE XC3 series standard PLC XC3-14RT-E XC3-24RT-E XC3-32RT-E XC3-42RT-E XC3-48RT-E XC3-60RT-E

 Brand:XINJE
 Condition:Brand NEW
 Model:According to the model you choose

 This item include:
   1Pcs PLC(According to the model you choose)

Features

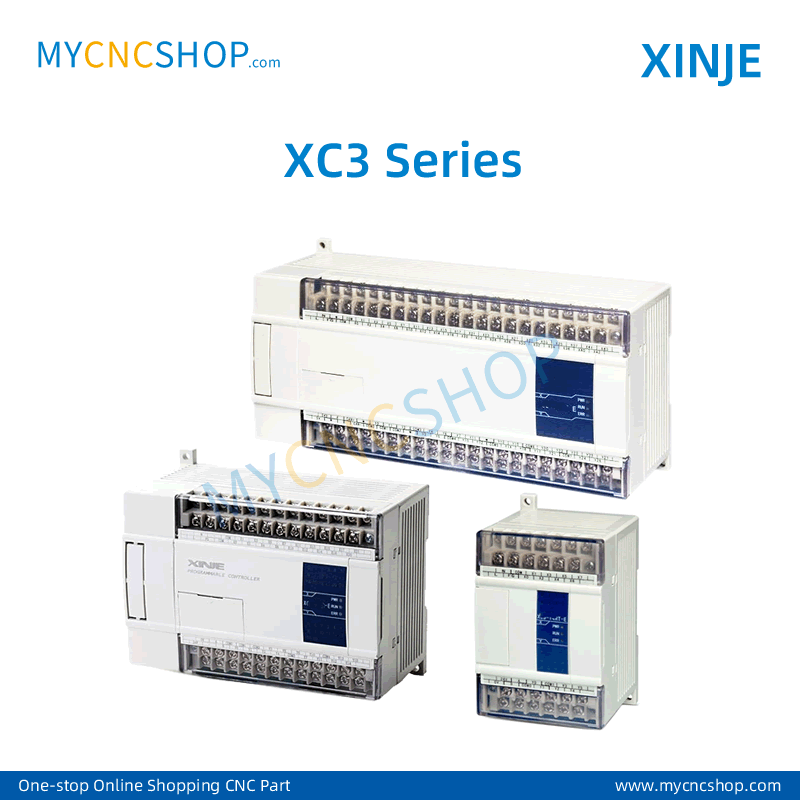

    XC3 series standard PLC, including 14, 24, 32, 42, 48, 60 point specifications.
    Complete functions, can meet the various needs of users
    Input Type: NPN or PNP
    Output type: transistor (T), relay (R), transistor-relay hybrid (RT, the first two are T)
    Power supply specifications: AC220V, DC24V
    Support high-speed counting (up to 80KHz), 2 high-speed pulse outputs (up to 100KHz), communication and other special functions
    Standard RS232 port for programming download
    Standard RS485 port (14 points is optional), used for various communications
    Support external expansion module (except 14 points), support external expansion BD board (except 14, 42 points)

XC3-14RT-E
    The host has 8 inputs/6 outputs, 2 transistor outputs, other relay outputs, AC100～240V power supply, can not be connected to BD board, 2 channels of AB phase counting, 2 channels of high-speed pulse;

XC3-14T-E
    Host 8 in/6 out, transistor output, AC100~240V power supply, can not connect BD board, 2-way AB-phase counting, 2-way high-speed pulse;

XC3-14R-E
    Host 8 in/6 out, relay output, AC100～240V power supply, can not connect BD board, 2-way AB-phase counting;

XC3-24RT-E
    The host has 14 inputs/10 outputs, 2 transistor outputs, other relay outputs, AC100～240V power supply, 3 AB phase counts, 2 high-speed pulses;

XC3-24T-E
    Host 14 in/10 out, transistor output, AC100～240V power supply, 3-way AB-phase counting, 2-way high-speed pulse;

XC3-24R-E
    Host 14 in/10 out, relay output, AC100～240V power supply, 3-way AB phase counting;

XC3-32RT-E
    Host 18 in/14 out, 2 transistor outputs, other relay outputs, AC100~240V power supply, 3 AB phase counting, 2 high-speed pulses;

XC3-32T-E
    Host 18 in/14 out, transistor output, AC100~240V power supply, 3-way AB-phase counting, 2-way high-speed pulse;

XC3-32R-E
    Host 18 in/14 out, relay output, AC100～240V power supply, 3-way AB phase counting;

XC3-42T-E
    Host 24 in/18 out, transistor output; AC100～240V power supply, 3-way AB-phase counting, 2-way high-speed pulse; no external BD board;

XC3-42RT-E
    The host has 24 inputs/18 outputs, 2 transistor outputs, and other relay outputs; AC100~240V power supply, 3-way AB-phase counting, 2-way high-speed pulse; no external BD board;

XC3-42R-E
    Host 24 in/18 out, relay output, AC100~240V, 3-way AB-phase counting; no external BD board;

XC3-48RT-E
    The host has 28 inputs/20 outputs, 2 transistor outputs, and other relay outputs; AC100～240V power supply, 2-way AB-phase counting, 2-way high-speed pulse;

XC3-48T-E
    Host 28 in/20 out, transistor output, AC100～240V power supply, 2 high-speed pulses;

XC3-48R-E
    Host 28 in/20 out, relay output, AC100~240V power supply, 2-way AB-phase counting;

XC3-60RT-E
    The host has 36 inputs/24 outputs, 2 transistor outputs, other relay outputs, AC100～240V power supply, 2-way AB-phase counting, 2-way high-speed pulse;

XC3-60T-E
    Host 36 in/24 out, transistor output, AC100～240V power supply, 2 high-speed pulses;

XC3-60R-E
    Host 36 in/24 out, relay output, AC100～240V power supply, 2-way AB phase counting;
