400W air-cooled spindle+bracket+power supply+PWM governor

  Condition:Brand NEW

  Model:400W Air-cooled spindle

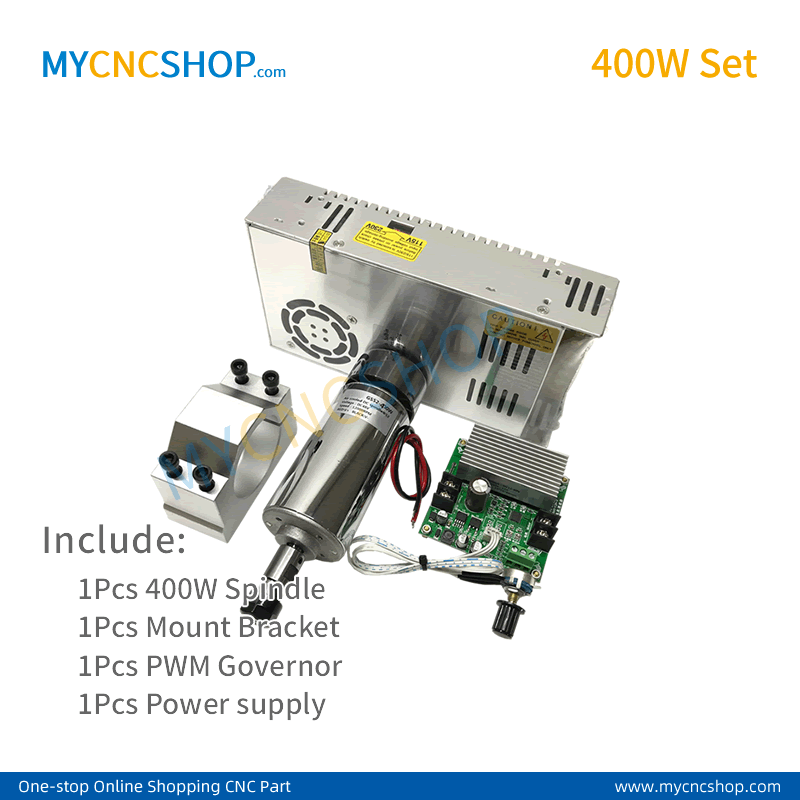

  This item include:
    1Pcs 400W Air-cooled spindle
    1Pcs Mount Bracket
    1Pcs PWM Governor
    1Pcs Power supply

  400W Spindle motor parameters:
    Working voltage: 12-48VDC (DC)
    Power: 400W
    Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
    Torque: 500mN.m
    Insulation resistance: > 2 megohms
    Dielectric strength of insulation: 400V
    Diameter: 52mm
    The radial runout of the main shaft is about 0.02-0.05.
    It can be used to engrave materials such as metal or non-metal.
    The spindle comes with forced air cooling and can work for a long time.

  PWM DC brush motor governor:
    Working voltage: DC12V-DC60V (limit 65V)
    The default potentiometer control (5K-100K feasible) default value is 10K;
    Analog 0-5V control, (unplug the XH2.54-3P potentiometer plug, connect the signal line to the middle pin of XH2.54-3P, and connect the ground line to the rightmost pin of XH2.54-3P).
    The MACH3 interface terminal supports external PWM signal input to control the speed regulation. The external PWM input requirements are: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle control speed regulation, (note that the external PWM signal control needs to unplug the XH2 .54-3P potentiometer plug control takes effect, otherwise it cannot be controlled).
    Rated current: 12A, overload short-circuit protection current 15A. (The output of overcurrent is cut off, the overcurrent indicator flashes, the potentiometer reset indicator goes out, and the overcurrent protection is released).
    Soft start function, to prevent the motor and power supply from being damaged due to excessive starting current of the motor at the moment, (default 0 second soft start), adjustable from 0 to 5 seconds.
    Control power: 12V140W, 24V280W, 36V400W, 48V550W, 60V700W
    PWM range: 0%-100%
