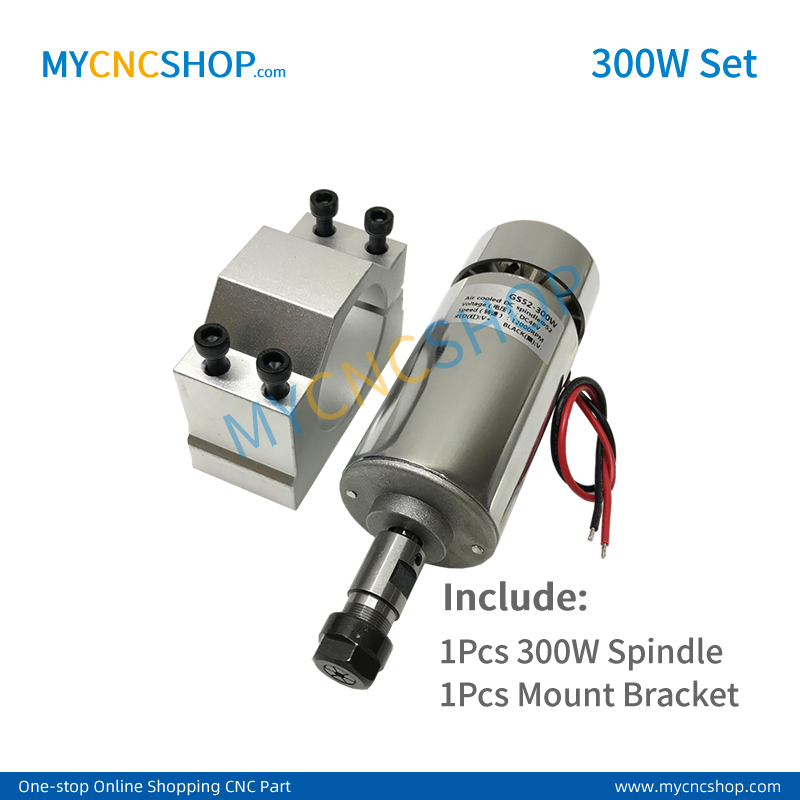

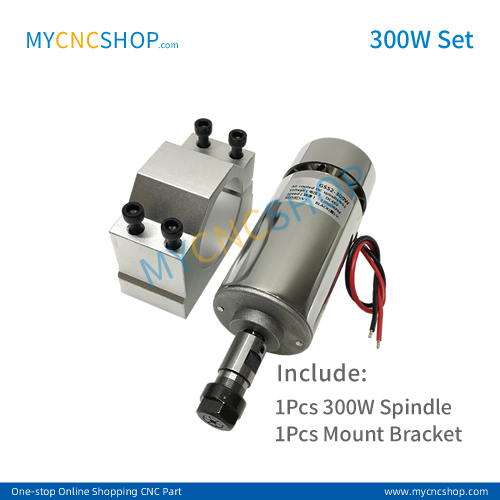

300W air-cooled spindle+bracket

  Model:300W Air-cooled spindle

  This item include:
    1Pcs 300W Air-cooled spindle
    1Pcs Mount Bracket

  300W Spindle motor parameters:
    Working voltage: 12-48VDC (typ. DC48V)
    Power: 300W
    Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
    Torque: 400mN.m
    Insulation resistance: > 2 megohms
    Dielectric strength of insulation: 400V
    The radial runout of the main shaft is about 0.02-0.05.
    It can be used to engrave materials such as metal or non-metal.
    The spindle comes with forced air cooling and can work for a long time.
